테스트 환경

• Ubuntu 22.04
• TDA3XEVM
• PROCESSOR_SDK_VISION_03_08_00_00

본 글은 TDA3xx 보드에 UART(Universal Asynchronous Receiver/Transmitter) 인터페이스를 사용하여 바이너리 이미지를 QSPI를 통해 메모리에 플래싱 하는 과정에 대해 설명

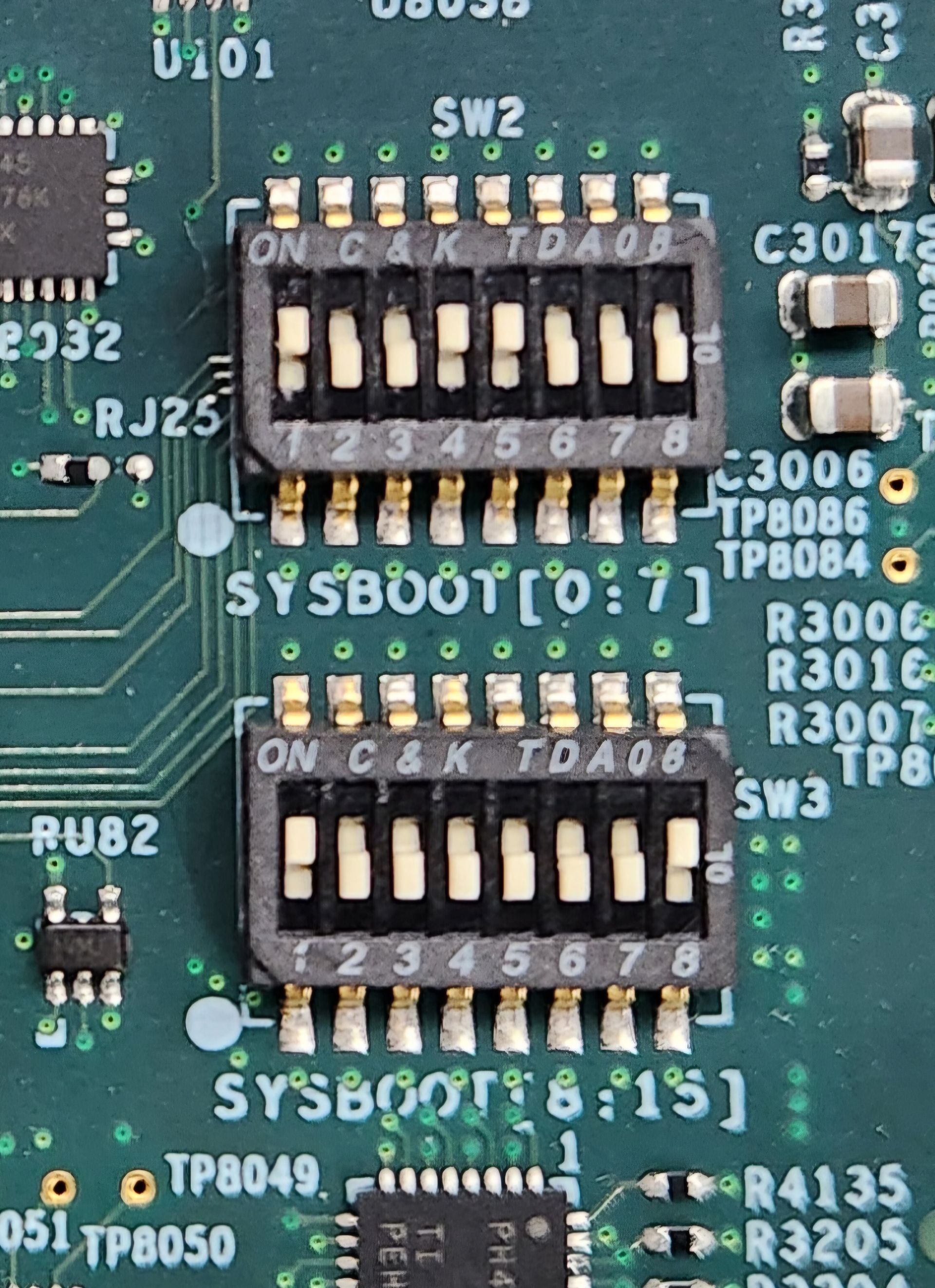

먼저 TDA3XEVM SYSBOOT 스위치 SW2를 [00010000][10000001]로 변경하여 보드를 UART 부팅 모드로 전환합니다.



Linux에서 사용할 수 있는 uart 프로그램(minicom, gtkterm 등)을 사용하여 UART 포트를 찾습니다. 포트는 일반적으로 /dev/ttyUSBx로 표시된다.



총 4개의 포트가 생성되는데 해당 목록에서 세 번째 포트를 사용한다.

본 글에서는 gtkterm으로 진행
포트는 /dev/ttyUSB2

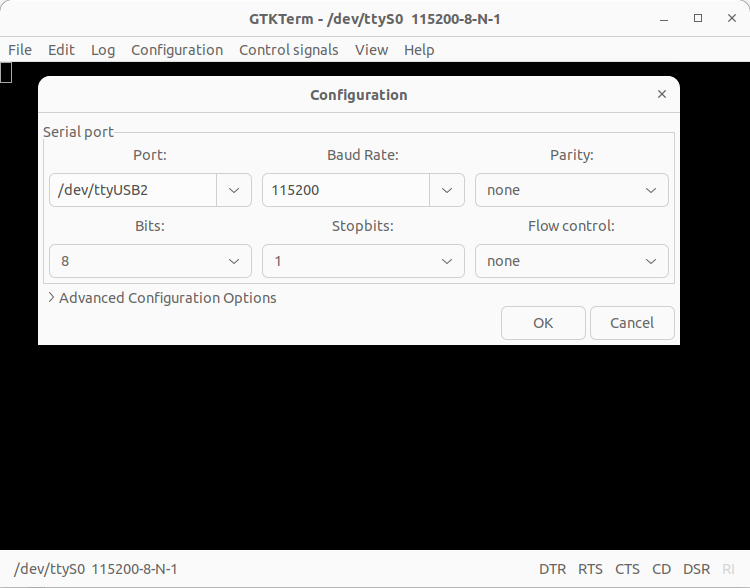

다음 설정으로 gtkterm 직렬 포트를 구성

Parameter	Value
Baud	115200
Data	8bit
Parity	none
Stop Bit	1 bit
Flow Control	None

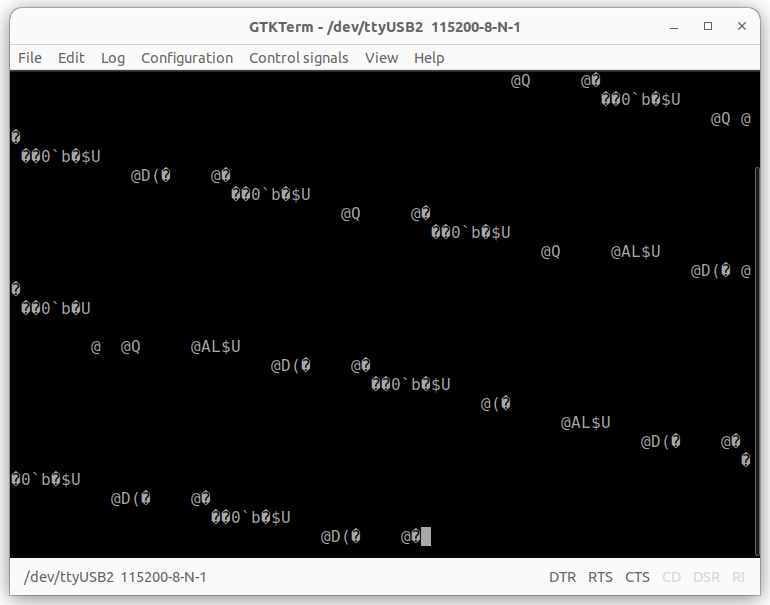

UART 포트에 연결되면 터미널에서 "AL!" 문구가 반복되면서 출력된다.

gtkterm은 인쇄할 수 없는 문자도 인쇄하므로 AL! 이 다른 문자와 함께 출력된다.

출력이 확인되었으면, UART 프로그램을 종료합니다.



PROCESSOR_SDK_VISION_03_08_00_00/ti_components/drivers/pdk_01_10_04_05/packages/ti/boot/sbl_auto/tools/mflash 경로에 Flash 가능한 스크립트 파일 mflash_run_config.sh이 존재합니다.

구조는 다음과 같습니다.

sbl_mflash=<path_to_sbl_mflash>
appimage_location=<path_to_AppImage>
appimage_offset=<AppImage offset>
sbl_location=<path_to_sbl>
sbl_offset=<sbl offset>
uart_port_number=<port_number>

아래 파일의 압축을 풀어 mflash 경로에 붙여 넣습니다.

Firmware.zip

10.42MB



압축 푼 파일을 따로 빌드하고 싶다면 아래 글을 참고하면 된다.

https://rorsi.tistory.com/166

TDA3xEVM Vision SDK Build



TDA3xEVM Vision SDK Build

그 뒤 구조를 해당 파일 이름과 일치시켜 줍니다.

sbl_mflash="sbl_mflash_tda3xx-evm"
board="tda3xxevm"
appimage_location="AppImage_BE"
appimage_offset="0x80000"
sbl_location="sbl_qspi_opp_high_ipu1_0_release.tiimage"
sbl_offset="0x00"
uart_port_number="2"

실행 프로그램 빌드를 진행

gcc -o mflash mflash_uart.c

그 뒤 스크립트 파일 실행

sudo ./mflash_run_config.sh

정상 적으로 실행된다면 아래와 같은 로그가 출력된다.

sudo ./mflash_run_config.sh
Usage: mflash -M <sbl_mflash> -P <Port Number> -C [optional: to clean the QSPI Flash]-F <fileName> <offset> -F <fileName> <offset> ... [PC] sbl_mflash sbl_mflash_tda3xx-evm
[PC] File	0	AppImage_BE
[PC] Offset	0	0x80000
[PC] File	1	sbl_qspi_opp_high_ipu1_0_release.tiimage
[PC] Offset	1	0x00
[PC] com /dev/ttyUSB2
[PC] ##########Starting USB/UART Flasing Utility##############
[PC] Put UART Boot Mode, make fresh UART connection & restart
[PC] Press Enter when done...
[PC] Opening serial port successful.
[RBL]4	[RBL]1	[RBL]5	[RBL]1	[RBL]41	[RBL]4c	[RBL]7	[RBL]2	[RBL]13	[RBL]2	[RBL]1	[RBL]0	[RBL]12	[RBL]15	[RBL]1	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]14	[RBL]21	[RBL]1	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0
[PC] Requesting the ASIC ID
[RBL]4	[RBL]1	[RBL]5	[RBL]1	[RBL]41	[RBL]4c	[RBL]7	[RBL]2	[RBL]13	[RBL]2	[RBL]1	[RBL]0	[RBL]12	[RBL]15	[RBL]1	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]14	[RBL]21	[RBL]1	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0	[RBL]0
[PC] Requesting PERI_REQ mode
[PC] Sending SBL_MFLASH filesize.
[PC] Size of sbl_mflash = 105970
[PC] Sending SBL_MFLASH... Please wait
[PC] File Size  = 105970
[PC] ##
[PC] Transfer Complete. Time = 10.000
[PC] Opening port for sbl_mflash.
[PC] Opening serial port successful.
[PC] sbl_mflash switch On Request Sent.
[TDAxx] Utility mflash will Execute now.
[TDAxx] Setting up QSPI
[TDAxx] QSPI Spansion 4 bit Device type
[TDAxx] MID - 0x20
[TDAxx] DID - 0xBA
[TDAxx] !!______TDAxx flashing utility______!!1
[TDAxx] Erasing entire QSPI Flash..This takes 50-60 seconds.
0x002DAxx] Erase Completed!!!2
[PC] Download started[PC] File Size  = 99432
[PC] ##
[PC] Write File Completed.

0x800002e taken to download file  = 0.002
[PC] Download started[PC] File Size  = 24660072
[PC] ####################
[PC] Write File Completed.

[PC] Time taken to download file  = 54.003
[TDAxx] Exiting.
[PC] ##############!!!!mflash shutting down!!!!#############

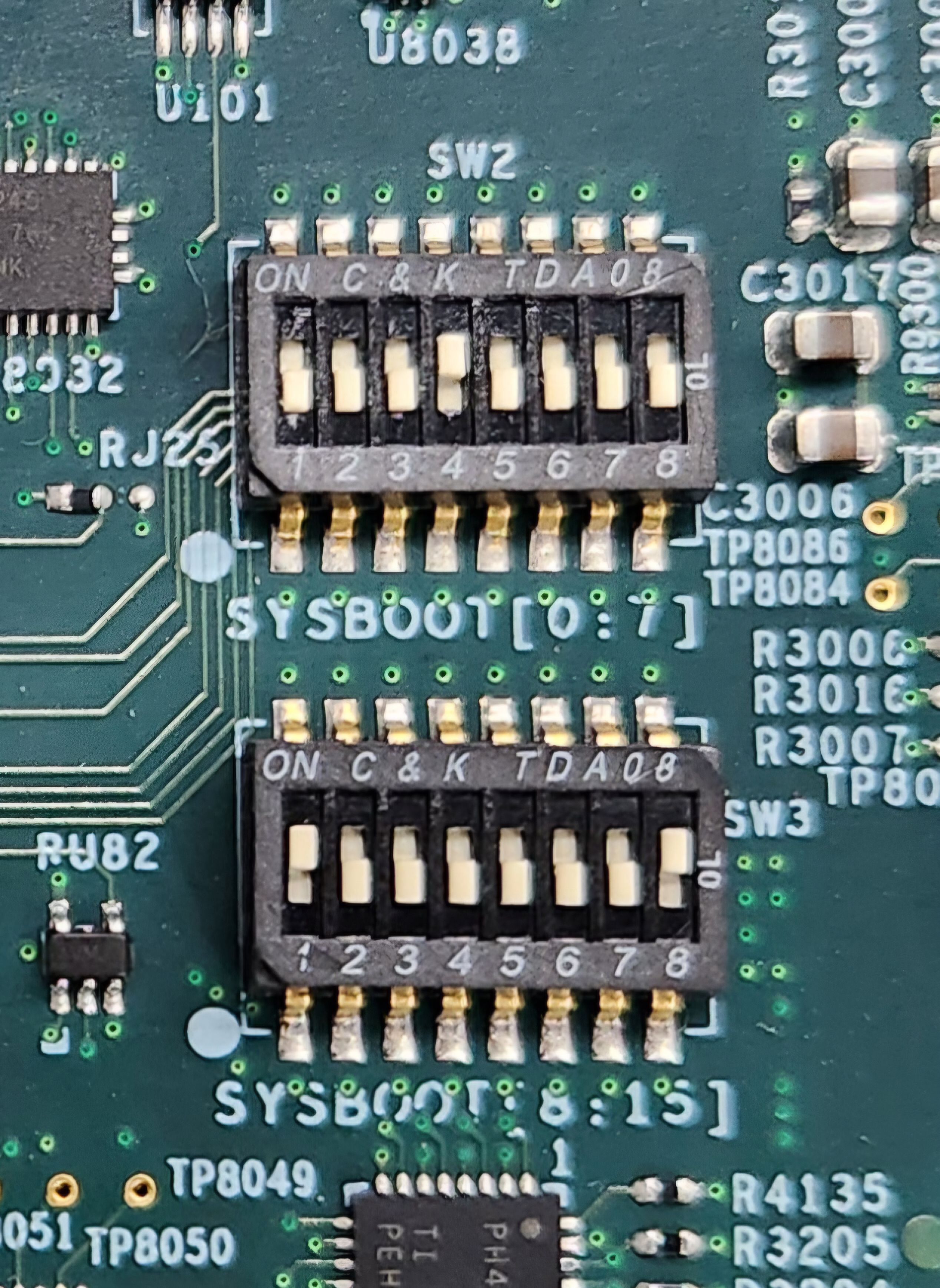

실행이 완료되었다면, 보드의 Boot Mode를 qspi 부팅 모드로 변경 후

보드 재 시작 시 아래와 같이 UART에서 부팅 로그 확인 가능

 Identified 15X15 Silicon

 DPLL Configuration Completed

 Clock Domain Configuration Completed

 Module Enable Configuration Completed

 TI EVM PAD Configuration Completed

 DDR Configuration Completed

 TDA3xx SOC Init Completed

 App Image Download Begins

 Manufacturer ID - 0x20
 Device ID - 0xba
 IPU1 CPU0 Processing

 IPU1 CPU0 Image Load Completed

 IPU1 CPU1 Processing

 IPU1 CPU1 Image Load Completed

 DSP1 Processing

 DSP1 Image Load Completed

 DSP2 Processing

 DSP2 Image Load Completed

 EVE1 Processing

 EVE1 Image Load Completed

 App Image Download Completed

 EVE MMU configuration completed

*****************************************************************

 32K Timer is used to measure cycles, divide by 32K to get time in seconds

 Reset to SBL Init Cycles - 484  (14.77 ms)

 SBL Initial Config Cycles - 225  (6.86 ms)

 SOC Init Cycles - 470  (14.34 ms)

 DDR Config Clock Cycles - 229  (6.98 ms)

 App Image Load Cycles - 26533  (809.72 ms)

 Slave Core Bootup Cycles - 110  (3.35 ms)

 SBL Boot-up Cycles - 27569  (841.33 ms)

 Time at which SBL started IPU1_0 - 28053  (856.10 ms)

*****************************************************************

 Jumping to IPU1 CPU1 App

 Jumping to IPU1 CPU0 App
[IPU1-0]      0.916092 s:  ***** IPU1_0 Firmware build time 16:42:49 Mar 17 2025
[IPU1-0]      0.916275 s:  *** SYSTEM: CPU Frequency <ORG = 212800000 Hz>, <NEW = 212800000 Hz>
[IPU1-0]      1.347312 s:  SYSTEM: Notify register to [IPU1-1] line 0, event 15...
[IPU1-0]      1.347465 s:  SYSTEM: Notify register to [DSP1] line 0, event 15...
[IPU1-0]      1.347587 s:  SYSTEM: Notify register to [DSP2] line 0, event 15...
[IPU1-0]      1.347709 s:  SYSTEM: Notify register to [EVE1] line 0, event 15...
[IPU1-0]      1.347953 s:  *** UTILS: CPU MHz = 20 Mhz ***
[IPU1-0]      1.348075 s:  SYSTEM: System Common Init in progress !!!
[IPU1-0]      1.357622 s:  UTILS: CIO: Init Done !!!
[IPU1-0]      1.357713 s:  SYSTEM: IPC init in progress !!!
[IPU1-0]      1.357805 s:  SYSTEM: Notify init done !!!
[IPU1-0]      1.358018 s:  SYSTEM: MsgQ init done !!!
[IPU1-0]      1.358171 s:  SYSTEM: IPC init DONE !!!
[IPU1-0]      1.360397 s:  SYSTEM: System Common Init Done !!!
[IPU1-0]      1.360458 s:  SYSTEM: System Init in progress !!!
[IPU1-0]      1.360519 s:  SYSTEM: BSP Common Init in progress !!!
[IPU1-0]      1.360611 s:  SYSTEM: BSP Common Init Done !!!
[IPU1-0]      1.360672 s:  SYSTEM: BSP Platform Init in progress !!!
[IPU1-0]      1.360824 s: PLATFORM: UNKNOWN CPU detected, defaulting to CPU REV 2.0
[IPU1-0]      1.360916 s:  SYSTEM: BSP Platform Init Done !!!
[IPU1-0]      1.360977 s:  SYSTEM: FVID2 Init in progress !!!
[IPU1-0]      1.361160 s:  SYSTEM: FVID2 Init Done !!!
[IPU1-0]      1.361251 s:  SYSTEM: VPS Init in progress !!!
[IPU1-0]      1.361312 s:  SYSTEM: VPDMA Descriptor Memory Address translation ENABLED [0xa0000000 -> 0x80000000]
[IPU1-0]      1.363752 s: *** VPDMA Firmware Loading... ***
[IPU1-0]      1.363874 s: VPDMA Firmware Address = 0x9ffc7800
[IPU1-0]      1.363966 s: VPDMA Load Address     = 0x4897d004
[IPU1-0]      1.364118 s: VPDMA Firmware Version = 0x4d0001b8
[IPU1-0]      1.364240 s: VPDMA List Busy Status = 0x00000000
[IPU1-0]      1.364301 s: *** VPDMA Firmware Load Success ***
[IPU1-0]      1.400567 s:  SYSTEM: VPS Init Done !!!
[IPU1-0]      1.401329 s:  UTILS: DMA: HWI Create for INT34 !!!
[IPU1-0]      1.401604 s:  SYSTEM: SW Message Box Msg Pool, Free Msg Count = 1024
[IPU1-0]      1.401726 s:  SYSTEM: Heap = LOCAL_DDR            @ 0x00000000, Total size = 262144 B (256 KB), Free size = 257272 B (251 KB)
[IPU1-0]      1.401878 s:  SYSTEM: Heap = SR_OCMC              @ 0x00000000, Total size = 0 B (0 KB), Free size = 0 B (0 KB)
[IPU1-0]      1.402061 s:  SYSTEM: Heap = SR_DDR_CACHED        @ 0x86103000, Total size = 369086464 B (351 MB), Free size = 369086464 B (351 MB)
[IPU1-0]      1.402305 s:  SYSTEM: Heap = SR_DDR_NON_CACHED    @ 0xbfe00000, Total size = 915712 B (0 MB), Free size = 908032 B (0 MB)
[IPU1-0]      1.402488 s:  SYSTEM: Initializing Links !!!
[IPU1-0]      1.479564 s:  SYSTEM: Initializing Links ... DONE !!!
[IPU1-0]      1.504300 s:  BOARD: Board Init in progress !!!
[IPU1-0]      1.504636 s:  BOARD: Board Init Done !!!
[IPU1-0]      1.512535 s:
[IPU1-0]      1.512596 s:  Vision SDK Version    : [REL_VISION_SDK_03_08_00_00]
[IPU1-0]      1.512688 s:  FVID2 Version         : [FVID_02_01_00_01]
[IPU1-0]      1.512749 s:  BSP Version           : [PDK_01_10_04__xx]
[IPU1-0]      1.512810 s:  Platform              : [EVM]
[IPU1-0]      1.512871 s:  SOC                   : [TDA3XX]
[IPU1-0]      1.512932 s:  SOC Revision          : [ES2.0]
[IPU1-0]      1.512993 s:  Board Detected        : [TDA3XX BASE]
[IPU1-0]      1.520344 s:  EEPROM Base Board Name: [ADAS-LOW-DDR3]
[IPU1-0]      1.520405 s:  Base Board Revision   : [REV D]
[IPU1-0]      1.520466 s:  Daughter Card Revision: [REV A]
[IPU1-0]      1.520527 s:
[IPU1-0]      1.523150 s:  SYSTEM: UART: INTERRUPT Mode is Selected
[IPU1-1]      0.926493 s:  ***** IPU1_1 Firmware build time 16:42:02 Mar 17 2025
[IPU1-1]      0.926645 s:  *** SYSTEM: CPU Frequency <ORG = 212800000 Hz>, <NEW = 212800000 Hz>
[IPU1-1]      1.348349 s:  SYSTEM: Notify register to [IPU1-0] line 0, event 15...
[IPU1-1]      1.348502 s:  SYSTEM: Notify register to [DSP1] line 0, event 15...
[IPU1-1]      1.348624 s:  SYSTEM: Notify register to [DSP2] line 0, event 15...
[IPU1-1]      1.348715 s:  SYSTEM: Notify register to [EVE1] line 0, event 15...
[IPU1-1]      1.349081 s:  SYSTEM: System Common Init in progress !!!
[IPU1-1]      1.349935 s:  UTILS: CIO: Init Done !!!
[IPU1-1]      1.350027 s:  SYSTEM: IPC init in progress !!!
[IPU1-1]      1.350149 s:  SYSTEM: Notify init done !!!
[IPU1-1]      1.350362 s:  SYSTEM: MsgQ init done !!!
[IPU1-1]      1.350423 s:  SYSTEM: IPC init DONE !!!
[IPU1-1]      1.352406 s:  SYSTEM: System Common Init Done !!!
[IPU1-1]      1.352498 s:  SYSTEM: System IPU1_1 Init in progress !!!
[IPU1-1]      1.353260 s:  UTILS: DMA: HWI Create for INT25 !!!
[IPU1-1]      1.353474 s:  SYSTEM: SW Message Box Msg Pool, Free Msg Count = 1024
[IPU1-1]      1.353565 s:  SYSTEM: Heap = LOCAL_DDR            @ 0x00000000, Total size = 262144 B (256 KB), Free size = 257448 B (251 KB)
[IPU1-1]      1.353718 s:  SYSTEM: Initializing Links !!!
[IPU1-1]      1.396754 s:  UTILS: PRF: ##### Cannot allocate Object for SYNC1 ####
[IPU1-1]      1.398432 s:  UTILS: PRF: ##### Cannot allocate Object for SYNC2 ####
[IPU1-1]      1.400201 s:  UTILS: PRF: ##### Cannot allocate Object for SYNC3 ####
[IPU1-1]      1.401726 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM0 ####
[IPU1-1]      1.403342 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM1 ####
[IPU1-1]      1.405233 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM2 ####
[IPU1-1]      1.407063 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM3 ####
[IPU1-1]      1.408833 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM4 ####
[IPU1-1]      1.410663 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM5 ####
[IPU1-1]      1.412615 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM6 ####
[IPU1-1]      1.414628 s:  UTILS: PRF: ##### Cannot allocate Object for ALGORITHM7 ####
[IPU1-1]      1.414750 s:  SYSTEM: Initializing Links ... DONE !!!
[IPU1-1]      1.414841 s:  SYSTEM: System IPU1_1 Init Done !!!
[DSP1  ]      1.349081 s:  SYSTEM: Notify register to [IPU1-0] line 0, event 15...
[DSP1  ]      1.349142 s:  SYSTEM: Notify register to [IPU1-1] line 0, event 15...
[DSP1  ]      1.349142 s:  SYSTEM: Notify register to [DSP2] line 0, event 15...
[DSP1  ]      1.349173 s:  SYSTEM: Notify register to [EVE1] line 0, event 15...
[DSP1  ]      1.349264 s:  *** UTILS: CPU MHz = 20 Mhz ***
[DSP1  ]      1.349295 s:  SYSTEM: System Common Init in progress !!!
[DSP1  ]      1.349417 s:  UTILS: CIO: Init Done !!!
[DSP1  ]      1.349447 s:  SYSTEM: IPC init in progress !!!
[DSP1  ]      1.349478 s:  SYSTEM: Notify init done !!!
[DSP1  ]      1.349508 s:  SYSTEM: MsgQ init done !!!
[DSP1  ]      1.349539 s:  SYSTEM: IPC init DONE !!!
[DSP1  ]      1.349996 s:  SYSTEM: System Common Init Done !!!
[DSP1  ]      1.350027 s:  SYSTEM: System DSP Init in progress !!!
[DSP1  ]      1.350179 s:  SYSTEM: SW Message Box Msg Pool, Free Msg Count = 1024
[DSP1  ]      1.350210 s:  SYSTEM: Heap = LOCAL_L2             @ 0x00800000, Total size = 227264 B (221 KB), Free size = 227264 B (221 KB)
[DSP1  ]      1.350240 s:  SYSTEM: Heap = LOCAL_DDR            @ 0x00000000, Total size = 524288 B (512 KB), Free size = 519608 B (507 KB)
[DSP1  ]      1.350301 s:  SYSTEM: Initializing Links !!!
[DSP1  ]      1.355029 s:  SYSTEM: Initializing Links ... DONE !!!
[DSP1  ]      1.355090 s: lz4CompDecomp Init
[DSP1  ]      1.355121 s:  SYSTEM: System DSP Init Done !!!
[DSP1  ]      1.488074 s:  SYSTEM: CACHE: L1P = 32 KB, L1D = 32 KB, L2 = 32 KB ... after boot !!!
[DSP1  ]      1.488104 s:  SYSTEM: CACHE: L1P = 32 KB, L1D = 32 KB, L2 = 32 KB ... after update by APP !!!
[DSP2  ]      1.349874 s:  SYSTEM: Notify register to [IPU1-0] line 0, event 15...
[DSP2  ]      1.349935 s:  SYSTEM: Notify register to [IPU1-1] line 0, event 15...
[DSP2  ]      1.349966 s:  SYSTEM: Notify register to [DSP1] line 0, event 15...
[DSP2  ]      1.349996 s:  SYSTEM: Notify register to [EVE1] line 0, event 15...
[DSP2  ]      1.350057 s:  *** UTILS: CPU MHz = 20 Mhz ***
[DSP2  ]      1.350088 s:  SYSTEM: System Common Init in progress !!!
[DSP2  ]      1.350240 s:  UTILS: CIO: Init Done !!!
[DSP2  ]      1.350271 s:  SYSTEM: IPC init in progress !!!
[DSP2  ]      1.350301 s:  SYSTEM: Notify init done !!!
[DSP2  ]      1.350332 s:  SYSTEM: MsgQ init done !!!
[DSP2  ]      1.350362 s:  SYSTEM: IPC init DONE !!!
[DSP2  ]      1.350820 s:  SYSTEM: System Common Init Done !!!
[DSP2  ]      1.350850 s:  SYSTEM: System DSP Init in progress !!!
[DSP2  ]      1.351003 s:  SYSTEM: SW Message Box Msg Pool, Free Msg Count = 1024
[DSP2  ]      1.351033 s:  SYSTEM: Heap = LOCAL_L2             @ 0x00800000, Total size = 227264 B (221 KB), Free size = 227264 B (221 KB)
[DSP2  ]      1.351094 s:  SYSTEM: Heap = LOCAL_DDR            @ 0x00000000, Total size = 524288 B (512 KB), Free size = 519608 B (507 KB)
[DSP2  ]      1.351125 s:  SYSTEM: Initializing Links !!!
[DSP2  ]      1.355914 s:  SYSTEM: Initializing Links ... DONE !!!
[DSP2  ]      1.355944 s: lz4CompDecomp Init
[DSP2  ]      1.355975 s:  SYSTEM: System DSP Init Done !!!
[DSP2  ]      1.490056 s:  SYSTEM: CACHE: L1P = 32 KB, L1D = 32 KB, L2 = 32 KB ... after boot !!!
[DSP2  ]      1.490087 s:  SYSTEM: CACHE: L1P = 32 KB, L1D = 32 KB, L2 = 32 KB ... after update by APP !!!
[EVE1  ]      1.343561 s:  ***** EVE1 Firmware build time 16:41:55 Mar 17 2025
[EVE1  ]      1.344689 s:  *** SYSTEM: CPU Frequency <ORG = 250000000 Hz>, <NEW = 333333333 Hz>
[EVE1  ]      1.349905 s:  SYSTEM: Notify register to [IPU1-0] line 0, event 15...
[EVE1  ]      1.350942 s:  SYSTEM: Notify register to [IPU1-1] line 0, event 15...
[EVE1  ]      1.351979 s:  SYSTEM: Notify register to [DSP1] line 0, event 15...
[EVE1  ]      1.352986 s:  SYSTEM: Notify register to [DSP2] line 0, event 15...
[EVE1  ]      1.354267 s:  SYSTEM: System Common Init in progress !!!
[EVE1  ]      1.355914 s:  UTILS: CIO: Init Done !!!
[EVE1  ]      1.356554 s:  SYSTEM: IPC init in progress !!!
[EVE1  ]      1.357195 s:  SYSTEM: Notify init done !!!
[EVE1  ]      1.358110 s:  SYSTEM: MsgQ init done !!!
[EVE1  ]      1.358689 s:  SYSTEM: IPC init DONE !!!
[EVE1  ]      1.368175 s:  SYSTEM: System Common Init Done !!!
[EVE1  ]      1.368815 s:  SYSTEM: System EVE Init in progress !!!
[EVE1  ]      1.369791 s:  UTILS: DMA: HWI Create for INT8 !!!
[EVE1  ]      1.370585 s:  SYSTEM: SW Message Box Msg Pool, Free Msg Count = 1024
[EVE1  ]      1.371408 s:  SYSTEM: Heap = LOCAL_L2             @ 0x40020000, Total size = 22528 B (22 KB), Free size = 22528 B (22 KB)
[EVE1  ]      1.372933 s:  SYSTEM: Heap = LOCAL_DDR            @ 0x00000000, Total size = 262144 B (256 KB), Free size = 257432 B (251 KB)
[EVE1  ]      1.374458 s:  SYSTEM: Initializing Links !!!
[EVE1  ]      1.437869 s:  SYSTEM: Initializing Links ... DONE !!!
[EVE1  ]      1.438571 s:  SYSTEM: System EVE Init Done !!!
[IPU1-0]      2.525742 s:  QSPI Init Started
[IPU1-0]      2.525925 s:  MID - 20
[IPU1-0]      2.525956 s:  DID - ba
[IPU1-0]      2.526017 s:  QSPI Init Completed Sucessfully
[IPU1-0]      2.533032 s:  UTILS: DMM: API NOT supported in TDA3xx !!!
[IPU1-0]      2.533154 s:  UTILS: DMM: API NOT supported in TDA3xx !!!
[IPU1-0]      2.533977 s:
[IPU1-0]      2.534038 s:  Current System Settings,
[IPU1-0]      2.534099 s:  ========================
[IPU1-0]      2.534191 s:  Display Type   : HDMI 1920x1080 @ 60fps
[IPU1-0]      2.534252 s:  Capture Source : Sensor OV10635 1280x720  @ 30fps - VIP, YUV422
[IPU1-0]      2.534343 s:  My IP address for interface 1 : none
[IPU1-0]      2.534404 s:  My IP address for interface 2 : none
[IPU1-0]      2.534465 s:  ISS Settings   : LDC=[OFF] VTNF=[OFF] WDR=[OFF]
[IPU1-0]      2.534526 s:
[IPU1-0]      2.534557 s:  ============
[IPU1-0]      2.534618 s:  Usecase Menu
[IPU1-0]      2.534648 s:  ============
[IPU1-0]      2.534679 s:
[IPU1-0]
[IPU1-0]  Vision SDK Usecases,
[IPU1-0]  --------------------
[IPU1-0]  1: Single Camera Usecases
[IPU1-0]  2: Multi-Camera LVDS Usecases
[IPU1-0]  3: AVB RX Usecases, (TDA2x & TDA2Ex ONLY)
[IPU1-0]  4: Dual Display Usecases, (TDA2x EVM ONLY)
[IPU1-0]  5: ISS Usecases, (TDA3x ONLY)
[IPU1-0]  6: TDA2x Stereo Usecases
[IPU1-0]  9: RADAR Usecases
[IPU1-0]  a: Miscellaneous test's
[IPU1-0]  f: TIDL Usecase
[IPU1-0]  g: Camera Radar Combo Usecases
[IPU1-0]
[IPU1-0]  s: System Settings
[IPU1-0]
[IPU1-0]  x: Exit
[IPU1-0]
[IPU1-0]  Enter Choice:
[IPU1-0]
