Arduino nano 33 IOT - 개발환경 설정
이제 Nano33 IoT보드에서 WiFi를 사용하기 위해서는 "WiFiNINA"라이브러리가 필요합니다.

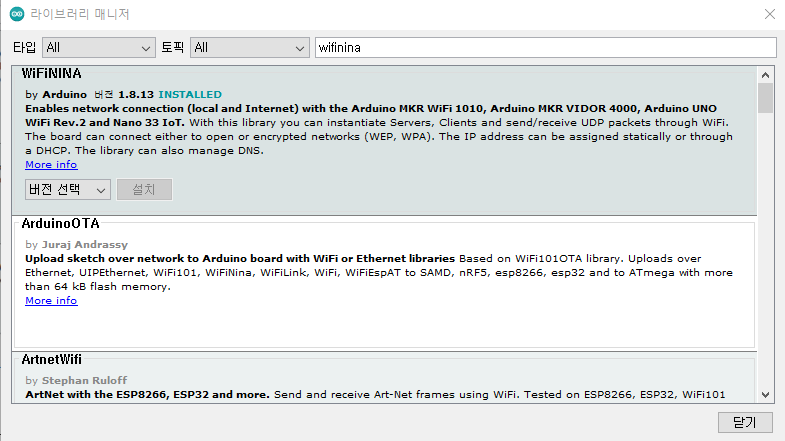

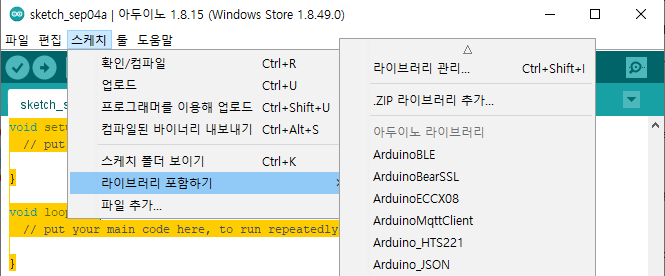

라이브러리 관리에서 "WiFiNINA"라이브러리를 받아줍니다.
이제 WiFi에 접속하는 소스코드에 대해 알아보도록 하겠습니다.
#include <SPI.h>
#include <WiFiNINA.h>
const char* ssid = "Test"; // WiFi의 SSID
const char* pass = "12345678"; // WiFi의 비밀번호
int status = WL_IDLE_STATUS;
void setup() {
Serial.begin(9600);
while (!Serial) {;}
if (WiFi.status() == WL_NO_MODULE) { //와이파이 모듈 체크
Serial.println("Communication with WiFi module failed!");
while (true);
}
String fv = WiFi.firmwareVersion(); //버전 체크
if (fv < WIFI_FIRMWARE_LATEST_VERSION) {
Serial.println("Please upgrade the firmware");
}
// 와이파이 연결시도(연결이 되어 있지 않을때만 실행)
while (status != WL_CONNECTED) {
Serial.print("Attempting to connect to WPA SSID: ");
Serial.println(ssid);
// Connect to WPA/WPA2 network:
status = WiFi.begin(ssid, pass);
// wait 10 seconds for connection:
delay(10000);
}
Serial.println("You're connected to the network");
printWifiStatus();
}
void loop() {
}
void printWifiStatus() {
// print the SSID of the network you're attached to:
Serial.print("SSID: ");
Serial.println(WiFi.SSID());
// print your board's IP address:
IPAddress ip = WiFi.localIP();
Serial.print("IP Address: ");
Serial.println(ip);
// print the received signal strength:
long rssi = WiFi.RSSI();
Serial.print("signal strength (RSSI):");
Serial.print(rssi);
Serial.println(" dBm");
}

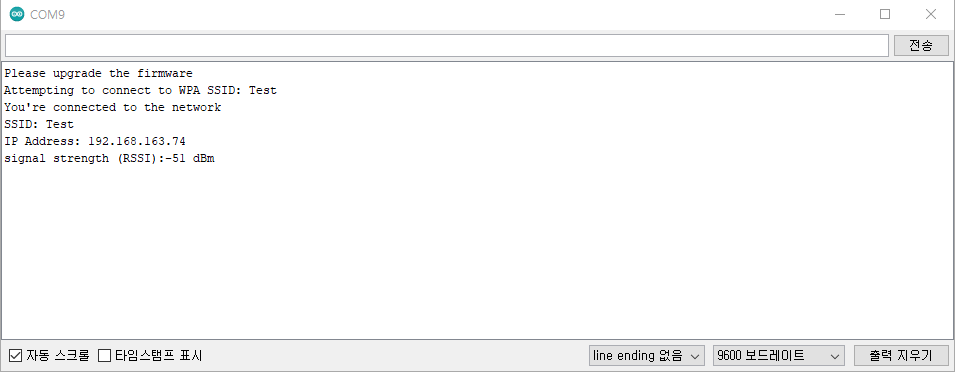

위의 소스를 업로드 한 뒤 시리얼 모니터를 확인하면 아래 그림과 같이 접속을 확인할 수 있습니다.
보시는 바와 같이 연결하고자 하는 ssid를 표시하고 연결에 성공하면 "you're connected to the network" 라는 메시지를 띄워주고 와이파이의 상태정보를 출력해줍니다.
WiFi AP Mode 방법
